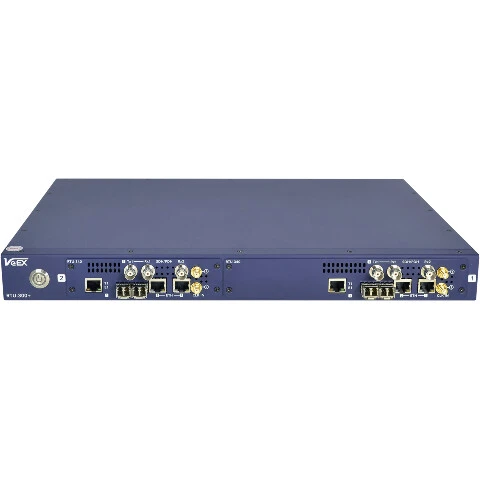

• Scalable 1U 19-inch rack mount platform with plug-and-play module installation
• Up to two factory-installed test modules supporting four independent simultaneous tests
• Multi-service testing from 10M to 100GE across Ethernet, Fibre Channel, OTN, SDH, SONET, PDH, DSn
• Flexible powering with dual redundant 15V AC/DC adaptors or -48V DC supply options
• Standalone operation with web browser and VNC access for immediate deployment
• VeSion cloud-based system integration for centralised network troubleshooting
• Multi-user remote access supporting up to 4 simultaneous users
• Optional built-in GNSS receiver for one-way latency measurements
• Internal 16GB flash storage with external USB memory support up to 64GB
• Cloud connectivity via R-Server, VeSion, VeExpress, and EZ Remote
• Ideal for broadband service verification combining Layer 2/3 throughput and stateful TCP testing
• Supports distribution across service provider network for service assurance monitoring

• Modular architecture supporting RTU-340 (64k to 2x10G) and RTU-600x (25G to 112G) modules
• Independent and simultaneous measurements with flexible module combinations
• Y.1564 V-SAM compliance for multi-service qualification and troubleshooting
• RFC6349 V-PERF TCP testing with stateful client and server modes for application-layer verification
• Layer 2/3 throughput testing for verifying Committed Information Rate (CIR) and key performance metrics
• Round-trip delay and one-way delay measurement with optional GNSS timing reference
• Packet delay variation, frame loss, and bandwidth rate measurements
• Support for distributed RTU deployment throughout service provider network for maintenance testing
• Centralised troubleshooting and problem resolution through VeSion architecture
• Ethernet management interface (10/100BASE-T) with USB 2.0 and RS232 serial console ports
• Redundant external power supply configuration for high availability
• Cloud-based storage and management through VeExpress and EZ Remote
• iPerf server compatibility for TCP performance testing

• Modular Support: Up to 2 factory-installed test modules (RTU-340 and/or RTU-600x)
• Test Coverage: 10M to 100 Gbps depending on module configuration
• Independent Tests: Up to 4 simultaneous independent tests
• Module Options:

1. RTU-340: 64k to 2x10G multi-service testing (Ethernet, Fibre Channel, EoOTN, OTN, SDH, SONET, PDH, DSn)

      2. RTU-600x: 25G to 112G multi-service testing (Ethernet, Fibre Channel, EoOTN, OTN)

• Supported Protocols: Ethernet, Fibre Channel, OTN, SDH, SONET, PDH, DSn, IEEE C37.94
• Test Modes: VeSion Cloud-Based System and Standalone (Web Browser)
• Dimensions: 4.4 x 48.26 x 30 cm (1.75 x 19 x 11.8 inches), 1U rack-mounted 19-inch wide
• Weight: 3.62 kg (8 lb) with 2x RTU-340, 3.92 kg (8.63 lb) with 1x RTU-340
• Power Consumption: RTU-300+ chassis 10W, RTU-340 module 20W each, RTU-600x 100G module 60W
• Power Supply Options:
• AC/DC adapter: Input 100-240 VAC 50/60 Hz 1.5A, Output 15V DC 13.4A
• Rack mount 48V: -48V DC 4.17A
• Redundant dual 15V configuration available
• Management Interfaces: Ethernet RJ45 10/100BASE-T FDX, USB 2.0 Type-A, RS232 serial console
• Data Storage: Internal 16GB Flash, External USB memory up to 64GB
• Timing Reference: Optional GPS/GNSS Receiver for precise timing and one-way latency
• Cloud Connectivity: R-Server, VeSion, VeExpress, EZ Remote
• Multi-User Support: Up to 4 simultaneous remote user access and control
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5% to 90% relative humidity non-condensing
• Test Applications: Service provisioning, activation, maintenance, assurance, broadband verification
• Certifications: RoHS compliant and Lead Free per Directive 2002/95/EC
