Software Dual test application support with flexible software architecture ReVeal™ PC software for firmware updates, configuration management, result processing, and report generation Fiberizer Desktop+ for advanced fibre trace analysis Fiberizer Cloud for centralised data storage and analysis R-Server support for workforce management and centralised test result storage Hardware 7-inch high-resolution full-colour TFT touchscreen with excellent visibility in all conditions Multiple connectivity options including 10/100Base-T, Wi-Fi™, Bluetooth®, and 3G support Built-in microphone and speaker for VoIP and VF applications Intelligent cooling system with temperature monitoring Replaceable Li-ion battery for extended field operation USB-A port for flash drives and fibre inspection probes Universal 2.5 mm optical interface with interchangeable SC, FC, ST, and LC adaptors Optional GNSS/GPS module for geotagging OTDR measurements

Optical Testing Optimised for FTTx/PON networks with low dead-zone performance for 1xN splitters and reflective events Single-mode wavelengths supported: 1310, 1490, 1550, and 1625 nm Filtered 1625 nm or 1650 nm OTDR port for live network testing and in-service measurements with embedded power detection High dynamic range up to 45 dB for long-distance and high-split PON testing Up to 500,000 sampling points for detailed analysis Typical event dead zone of 0.8 m and attenuation dead zone of 3 m Supports Telcordia GR-196 and SR-4731 .sor file formats Optional V-Scout Smart Link Mapping for simplified multi-acquisition visualisation Optional integration of Visual Fault Locator (VFL), Optical Power Meter, and Light Sources Optional USB Fibre Inspection Scope Multi-Service Testing SyncE timing, clock accuracy, and wander analysis OTN, SDH/SONET, and PDH/DSn testing Ethernet and Fibre Channel support CPRI and OBSAI network testing

TX300s OTDR Module – Telecom Test Solutions

The TX300s Fibre Optics test module for the VeEX® VePAL platform provides a comprehensive set of optical testing capabilities, including OTDR, Optical Power Meter (OPM), Light Source, and Visual Fault Locator (VFL). It is designed to support end-to-end network validation from physical fibre layers through advanced multi-service performance testing.

In addition to optical diagnostics, the platform supports a wide range of network technologies including OTN, SDH/SONET, PDH/DSn, Ethernet, Fibre Channel, and synchronous packet networks, making it a complete solution for modern telecom and enterprise networks.

Fiberizer® software for Windows®, Android™, and Apple® devices enables easy data transfer, test management, and report generation across VeEX fibre testing systems. View the Fiberizer webpage for more details.

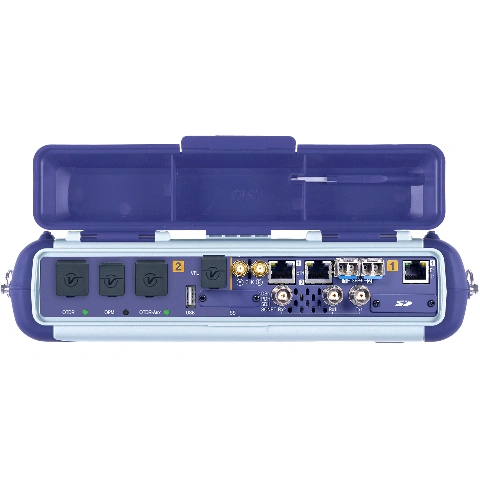

TX300s OTDR Module
