• 10 Mbps to 100 Gbps Ethernet testing in single module
• QSFP28/QSFP+, SFP28/SFP+, and RJ45 test ports for flexibility
• Supports IEEE 802.3bj Clause 91 RS-FEC for signal integrity testing
• Optical Lane BERT and CAUI-4/XLAUI Lane BERT capabilities
• PCS Layer Testing with skew generation and monitoring
• Multi-stream testing up to 32 independent streams for complex traffic
• RFC2544 and Y.1564 V-SAM testing for service compliance
• Fibre Channel 1G to 32G Layer FC-1 and FC-2 throughput testing
• OTU4 testing with bulk and 100GE Ethernet payloads
• Line rate packet capture with Wireshark decode
• Can be combined with RTU-340 module for extended capabilities

• Transmit frequency offset to stress network up to ±150 ppm
• Optical Lane BERT and CAUI-4/XLAUI Lane BERT testing
• FEC Layer Testing with skew generation per lane pair (0 to 160,000 bits)
• PCS Layer Testing with configurable skew and alarm thresholds
• Service Disruption Measurements with concurrent monitoring across multiple layers
• Throughput, latency, jitter, frame loss, and back-to-back measurements per RFC2544
• Multi-stream testing with up to 32 configurable independent streams
• IPv4 and IPv6 traffic generation with VLAN stacking and MPLS tag support
• MAC flooding generates test frames with up to 4,096 incrementing MAC addresses
• Smart Loop mode for Layer 2 and Layer 3 with configurable parameters
• Configurable packet capture filters with integrated Wireshark decode
• RFC6349 V-PERF TCP/UDP test for application-layer performance testing
• FTP and HTTP throughput testing with V-TEST and V-FTP features
• OTN Ethernet over OTN (EoOTN) testing with overhead manipulation
• Tandem Connection Monitoring (TCM) for multi-layer optical testing

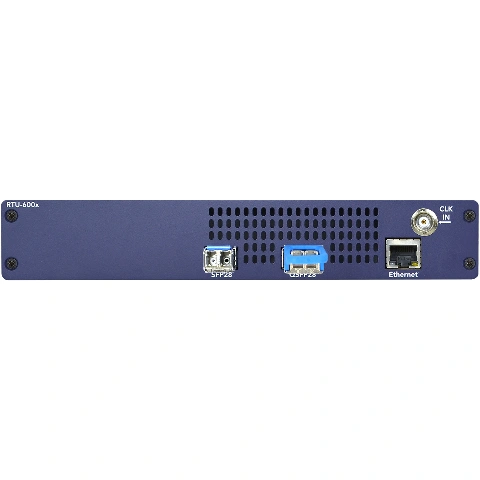

• Test Ports: 1x QSFP28/QSFP+, 1x SFP28/SFP+, 1x RJ45 per module
• Maximum Data Rate: 100 Gbps per port
• Supported Applications: 100GE, 40GE, 25GE, 10GE, 100/1000BASE-X, 10/100/1000BASE-T, 32G FC, OTU4/OTU3, OTU2/OTU1
• Ethernet Testing: 10 Mbps to 100 Gbps with full frame handling
• Frame Sizes: 64 to 1,518 bytes standard, jumbo frames up to 16,000 bytes
• FEC Lane Skew: Generation 0 to 160,000 bits, RX tolerance up to 4,000 bits
• PCS Lane Skew: Generation 0 to 16,000 bits, RX tolerance up to 4,000 bits
• Multi-Stream Support: Up to 32 streams on 40GE/100GE, 10 streams on 10GE, 8 streams on 1GE
• RFC2544 Compliance: Throughput, Latency, Jitter, Frame Loss, Back-to-Back tests
• Fibre Channel Support: 1G to 32G with FC-1 and FC-2 layer testing
• OTN Support: OTU4/OTU3/OTU2/OTU1 testing with EoOTN capabilities
• Transmit Clock Source: Internal (Quartz ±3.5 ppm), Recovered, or External
• Frequency Offset: ±150 ppm in 0.1 ppm steps
• OTN Mappings: AMP, BMP, and GMP procedures supported
• TCP/UDP Testing: RFC6349 V-PERF with stateful testing at line rate
• FTP Testing: V-FTP with upload/download file testing capability
• HTTP Testing: V-TEST with Ookla Speedtest compatibility

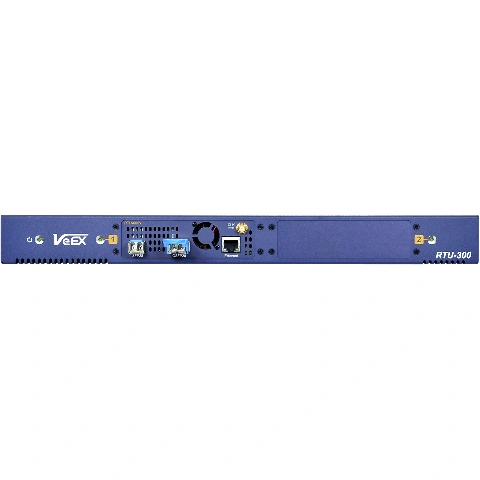

• Dimensions: 4.4 x 48.26 x 30 cm (1.75 x 19 x 11.8 inches), 1U 19-inch rack
• Weight: 3.51 kg (7.74 lb) with single module, 3.85 kg (8.49 lb) with dual modules
• Power Consumption: Chassis 10W, RTU-600x module not specified (varies by operations)
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5% to 90% relative humidity non-condensing
• Power Input: 100 to 240 VAC 50/60 Hz 2.4A or 15V DC 5.33A
• Certifications: RoHS compliant and Lead Free per Directive 2002/95/EC
• Management: Web-based interface, VNC client, SCPI remote control support
• Results Export: PDF, CSV, TXT formats with advanced report generation via ReVeal RXTS
