• Dual 10G test ports for simultaneous testing on Ethernet, Fibre Channel, and OTN applications
• Supports 1GE and 10GE optical (SFP+) and electrical (RJ45) interfaces concurrently
• RFC2544 compliance testing with automated throughput, latency, frame loss, and back-to-back tests
• ITU-T Y.1564 V-SAM test suite for multi-service qualification and troubleshooting
• IEEE 802.3ah, 802.1ag, ITU-T Y.1731, and MPLS-TP OAM support for comprehensive service management
• V-PERF TCP/UDP testing compliant with RFC6349 methodology for application-layer performance
• Multi-stream testing up to 16 independent traffic streams on 1GE and 10GE interfaces
• Fibre Channel 1G to 10G layer FC-1 and FC-2 throughput testing with RFC2544 support
• OTN/SDH/SONET/PDH/DSn testing with flexible mapping and multiplexing capabilities
• Service Disruption Time (SDT) and Automatic Protection Switching (APS) measurements
• Packet capture and decode with Wireshark integration for protocol analysis
• Auto Scripting for automated test sequences with configurable durations and pass/fail control

• RFC2544 Advanced SLA Mode with primary stream and up to seven independent background traffic streams
• Q-in-Q (VLAN stacking), MPLS, MPLS-TP, and Provider Backbone Bridging (PBB/MAC-in-MAC) support
• Ethernet OAM testing including Link Fault Management (IEEE 802.3ah) and Service Level OAM (IEEE 802.1ag/Y.1731)
• Layer 2 Control Protocol Transparency test per MEF 45 standard with Cisco L2CP frame formats
• Smart Loopback modes at Layer 1, 2, 3, and 4 with configurable MAC/VLAN/IP filtering
• Intelligent network discovery enabling remote control of loopback and peer-to-peer testing
• VLAN Scan and Monitor discovering all VLAN flows including Q-in-Q tagging with up to 8 streams
• IPv6 support for test traffic generation, loopback capability, and connectivity testing
• Layer 4-7 features including FTP throughput testing and HTTP testing with Ookla Speedtest compatibility
• Line rate packet capture with protocol decode compatible with Wireshark and PCAP format export
• Advanced OTN testing with EoOTN support, overhead manipulation, and Tandem Connection Monitoring
• SDH/SONET overhead analysis and generation with pointer testing and APS measurements
• PDH/DSn testing from 140 Mbps (E4) down to 64k bps with pulse mask analysis
• Fibre Channel Full-duplex testing with primitive sequence protocol and buffer-to-buffer credit support

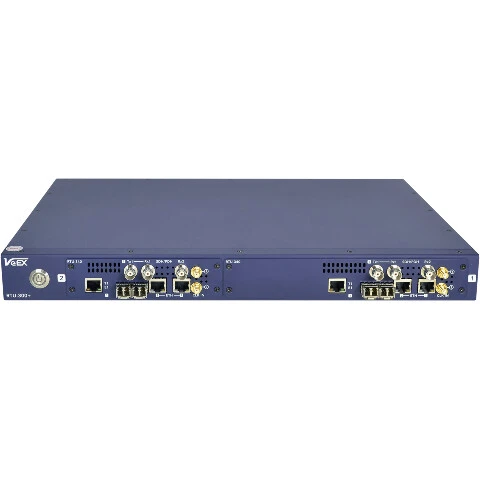

• Test Ports (per module): 2x SFP+/SFP (Ethernet, Fibre Channel, OTN), 2x RJ45 (1000/100/10BASE-T), 3x BNC (SDH/SONET), 1x RJ48 (PDH/DSn)
• Ethernet Rates: 10GBase-X, 1000Base-X, 100Base-FX, 10GBase-T, 5GBase-T, 2.5GBase-T
• Maximum Throughput: 10 Gbps per port full-duplex
• Frame Sizes: 64 bytes to 10,000 bytes (RFC2544 Layer 4 tests limited to 1518 bytes)
• Multi-Stream Support: 16 independent streams on 1GE and 10GE interfaces
• RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 bytes plus 2 user-configurable sizes
• OTN Support: OTU2, OTU1, OTU2e, OTU1e with EoOTN for Ethernet over OTN testing
• SDH/SONET Support: STM-64/16/4/1/0, OC-192/48/12/3/1, STS-1 with full multiplexing and mapping
• PDH/DSn Support: E4 (140 Mbps), DS3 (45 Mbps), E3 (34 Mbps), E2 (8.4 Mbps), E1 (2 Mbps), DS1 (1.5 Mbps) down to 64k bps
• Fibre Channel Support: 1, 2, 4, 8, 10 Gbps with FC-1 and FC-2 layer testing
• Fibre Channel Rates: 1.0625 Gbps, 2.125 Gbps, 4.25 Gbps, 8.5 Gbps, 10.52 Gbps
• Transmit Clock Sources: Internal (±3.5 ppm), Recovered, or External (1.544/2.048/10 MHz via SMA)
• Frequency Offset: Up to 50 ppm (25,000 ppm for E1) in 0.1 ppm steps
• Dimensions: 4.4 x 48.26 x 30 cm (1.75 x 19 x 11.8 inches), 1U rack-mounted 19-inch wide
• Weight: 3.62 kg (8 lb) single module, 3.92 kg (8.63 lb) dual modules
• Power Consumption: RTU-300+ chassis 10W, RTU-340 module 20W each
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5% to 90% relative humidity non-condensing
• Management: Web browser, VNC access, up to 4 remote user sessions, 4 independent test groups
• Test Modes: VeSion Standalone, Peer-to-Peer Controller/Responder, loopback modes
• Error Patterns: PRBS (2^7 to 2^31), Fixed patterns (0000, 1111, 1010, 1100, etc.), user-defined sequences
• Certifications: RoHS compliant and Lead Free per Directive 2002/95/EC
