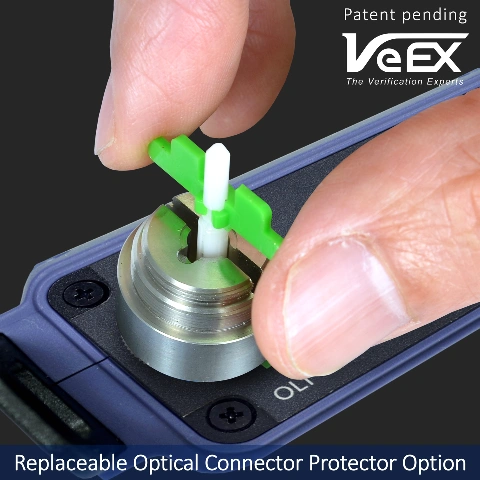

Field-replaceable Optical Connector Protector System (US Patent 12,481,111) helps extend device life, minimise downtime, and improve operational efficiency. Compatible with GPON and XG(S)-PON networks Pass/fail thresholds based on ITU-T and IEEE standards for faster service activation Available in Pass-Through PON Analyser (PX92) and Terminated PON Meter (PX92T) configurations Intuitive user interface for simple operation Flow® workflow support for streamlined testing and report generation NoApp® QR code functionality for quick result sharing Built-in NFC support for instant cloud-based test result transfer Easy reporting and data management through R-Server integration USB-C PD interface for charging, storage devices, and LAN adaptors Remote access and control via web browser, VNC®, and EZ Remote services Field-upgradable software using USB storage devices Fast startup in approximately 20 seconds Rechargeable Li-Ion battery designed for a full day of typical testing 5-inch high-resolution capacitive touchscreen with gesture support Compact and rugged design for field environments

Selective PON optical power measurement PX92 supports 1490, 1577, 1270, and 1310 nm pass-through testing PX92T supports 1490 nm and 1577 nm measurements Low pass-through insertion loss of ≤1.5 dB typical (PX92) GPON and XG(S)-PON support Automatic PON-ID detection, including OLT ID, ODN class, transmit power level, and link pass/fail status PON ONT emulation capabilities ONT ID, serial number, and status monitoring (PX92) Ethernet Testing IPv4, IPv6, PPPoE, DHCP, and static IP support Ping and traceroute diagnostics Layer 4+ performance testing with V-TEST (Ookla® Speedtest®, VeEX Managed and Manual modes) V-PERF testing based on RFC6349 standards Wi-Fi Testing IPv4, IPv6, DHCP, and static IP connectivity support Layer 4+ validation with Ookla® Speedtest® and iPerf3 Wi-Fi analysis across 2.4 GHz, 5 GHz, and 6 GHz bands Supports Wi-Fi 802.11 a/b/g/n/ac/ax standards Wi-Fi scanning, coverage verification, and speed testing up to 2 Gbit/s

PX92 & PX92T – Telecom Test Solutions

Products by manufacturer

VeEx

PX92 & PX92T

Products by manufacturer

VeEx

PX92 & PX92T

PON Analyser and Multi-Gigabit Service QoE Test Set with Wi-Fi Validation

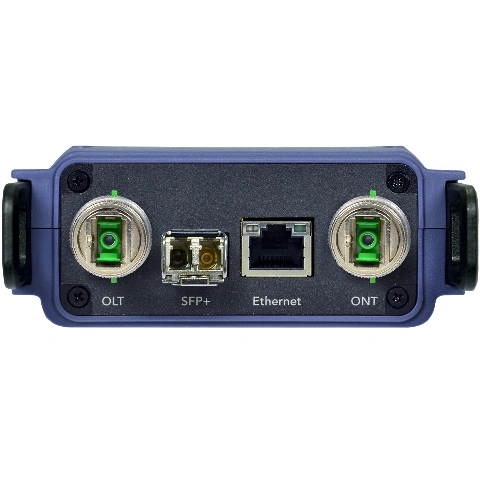

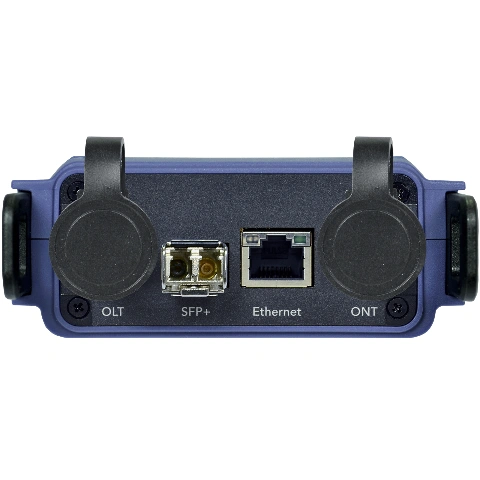

The PX92 and PX92T are advanced PON analysers designed for fibre network testing, service activation, and performance validation. Equipped with RJ45 and SFP+ Ethernet interfaces, both models support Layer 4+ testing and Quality of Experience (QoE) verification at speeds up to 10 Gbps.

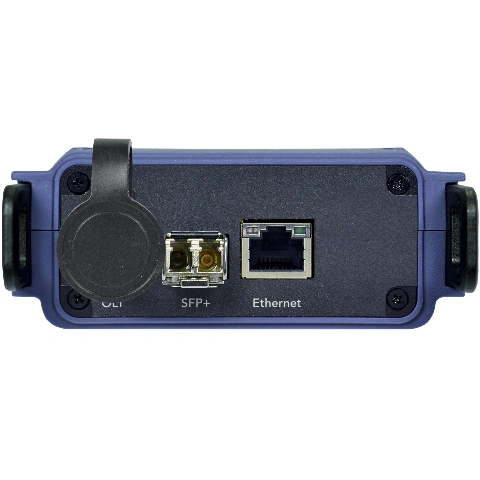

The PX92 features pass-through PON analysis with power level monitoring and OLT/ONT identification, making it ideal for live service activation. The PX92T is optimised for network construction and deployment testing with dual 1490 nm and 1577 nm PON power measurement. Both models also support PON ONT emulation and Wi-Fi performance testing.

Advanced Test, Measurement & Network Assurance Solutions

Helping organisations design, deploy, validate and maintain reliable communications networks with industry-leading technology and local engineering expertise.
