• Available in multi-band single-port and multi-band dual-port versions.
• Optional odometer interface for enhanced distance-based sampling accuracy.
• Eliminates the need for complex scanners and bulky field setups during outdoor CW testing.
• Works with the WalkView™ Android application for live measurement viewing.

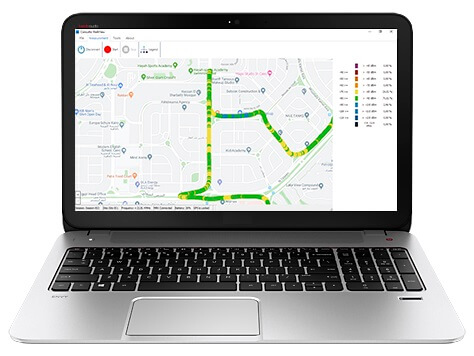

• Allows RSSI levels to be displayed directly on Google Maps.
• Supports exporting geo-tagged measurement data to radio planning software.
• Compatible with WalkView™ Windows version for efficient multi-band scanning.

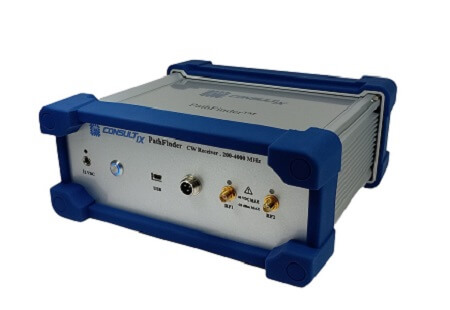

• Portable handheld receiver designed for field measurements
• Multi-channel scanning with support for up to 12 channels
• Complies with 40-λ Lee Criteria with sampling rates up to 550 samples per second
• High sensitivity with DANL below -120 dBm
• Adjacent channel rejection of -40 dBc (@100 kHz)
• Distance sampling mode with wheel trigger support

WalkView™ Software:

• Available for both indoor and outdoor testing on Android devices
• Outdoor PC version with NMEA GPS support
• Supports a wide range of maps and floor plans
• Compatible with formats used by ASSET, Atoll, Planet, iBwave, MapInfo, and other planning tools
• Provides both raw and averaged data file exports

Supported Bands:

• 5G bands up to 4 GHz
• CBRS
• LTE
• UMTS / HSPA
• GSM / EDGE
• CDMA2000 / EV-DO
• Wi-Fi / WiMAX
• Public Safety / TETRA / LMR networks

• Frequency Range: 150 to 4200 MHz
• Number of Scanned Channels: Up to 12
• Minimum Frequency Step: 10 KHz
• DANL: <-120 dBm
• Modulation: CW
• Number of RF Ports: 1 or 2
• Battery Operation: 120 Minutes
• Weight: 2.3 kg (5 lb)
