• Consolidate and centralise large-scale network traffic with a high-density 400G aggregation platform built for modern data centres and service provider networks
• Scale visibility infrastructure with up to 12.8 Tbps non-blocking throughput, supporting multi-speed interfaces from 10G to 400G in a compact 1RU form factor
• Ensure reliable, high-performance operation using advanced switching silicon optimised for large-scale visibility deployments
• Simplify complex monitoring setups by aggregating traffic from multiple TAP and SPAN sources into a single, unified layer
• Improve tool efficiency by intelligently distributing packet streams across multiple monitoring and security platforms
• Support flexible architectures with both inline and out-of-band deployment, including service chaining capabilities
• Increase monitoring precision with advanced filtering and traffic steering to deliver only relevant data to tools
• Maintain continuous uptime with redundant power supplies, hot-swappable cooling, and optimised airflow design
• Streamline operations with centralised management of multiple devices via NEOX PacketDirector

• Supports high-density aggregation across 10G to 400G TAP, SPAN, and tool ports for diverse network environments

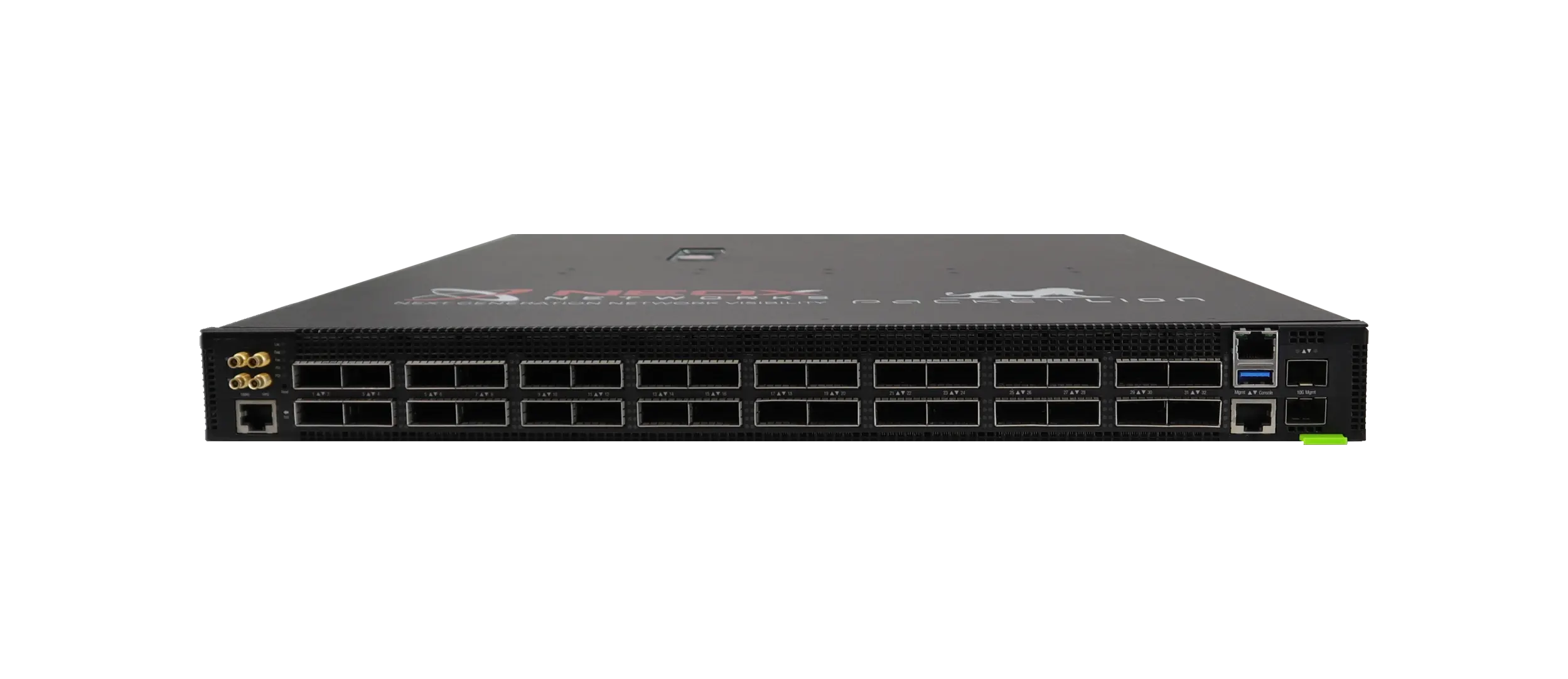

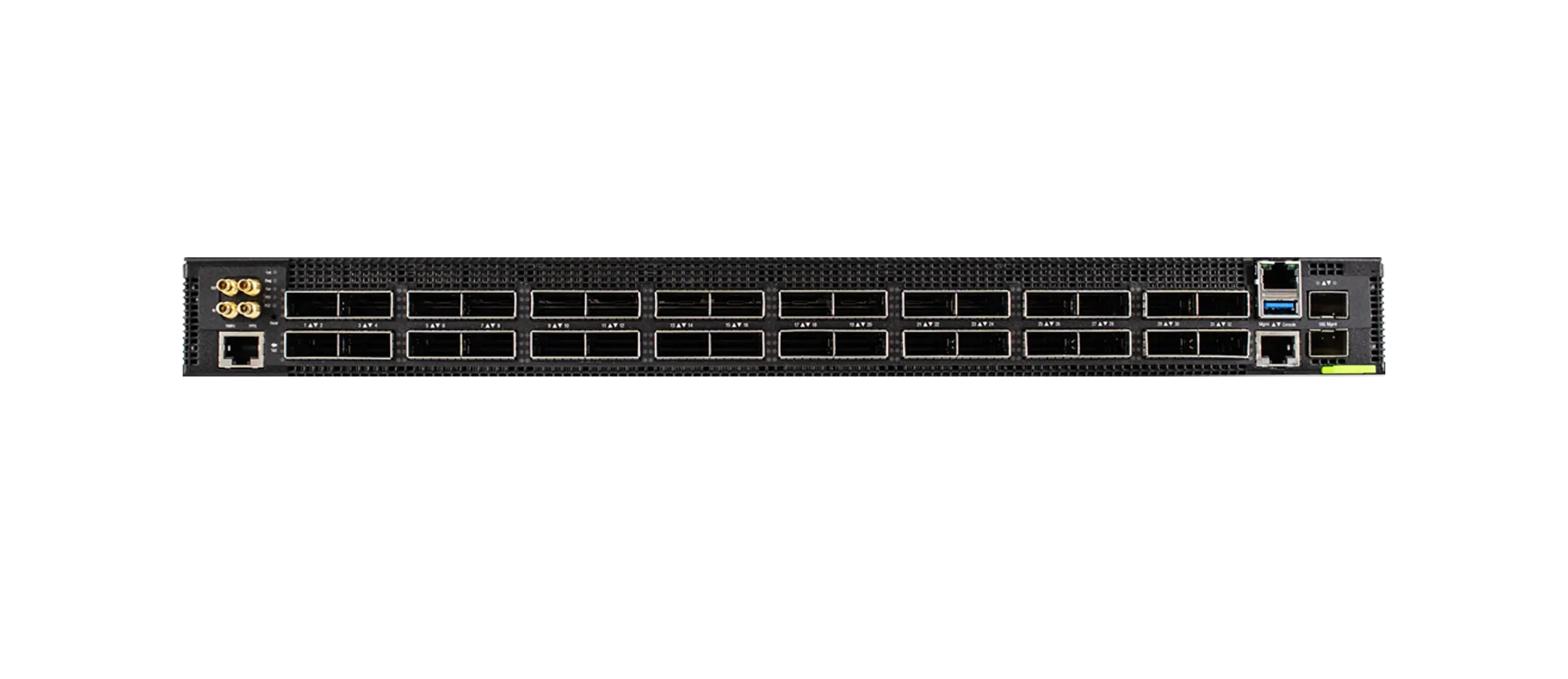

• Provides 32 × 400G QSFP-DD ports with flexible downspeed options in a compact 1RU design
• Scales up to 64 × 40G or 128 × lower-speed ports using fan-out configurations
• Delivers line-rate traffic aggregation, processing, and brokering with up to 12.8 Tbps non-blocking throughput
• Includes 64 MB buffer with jumbo frame support for efficient traffic handling
• Enables both inline and out-of-band deployments with service chaining for security tools
• Offers flexible port mapping options including 1:1, N:1, 1:N, and N:N configurations
• Supports port splitting (simplex mode) and customisable port labelling
• Features packet slicing, truncation, and selective header or VLAN stripping
• Provides intelligent load balancing based on 5-tuple traffic parameters
• Delivers advanced filtering across MAC, VLAN, IP, TCP/UDP, DSCP, and MPLS fields
• Supports tunnel-aware filtering for protocols such as GTP, GRE, MPLS, and L2TP
• Allows custom traffic control with user-defined filtering (UDF) rules
• Offers flexible management via CLI, SSH, SNMP, Web UI, NETCONF, and REST API with Syslog and SNMP monitoring
• Enables centralised control of multiple devices through NEOX PacketDirector
• Supports secure authentication using RADIUS, TACACS+, and LDAP
• Includes Digital Diagnostics Monitoring (DDM) for enhanced visibility

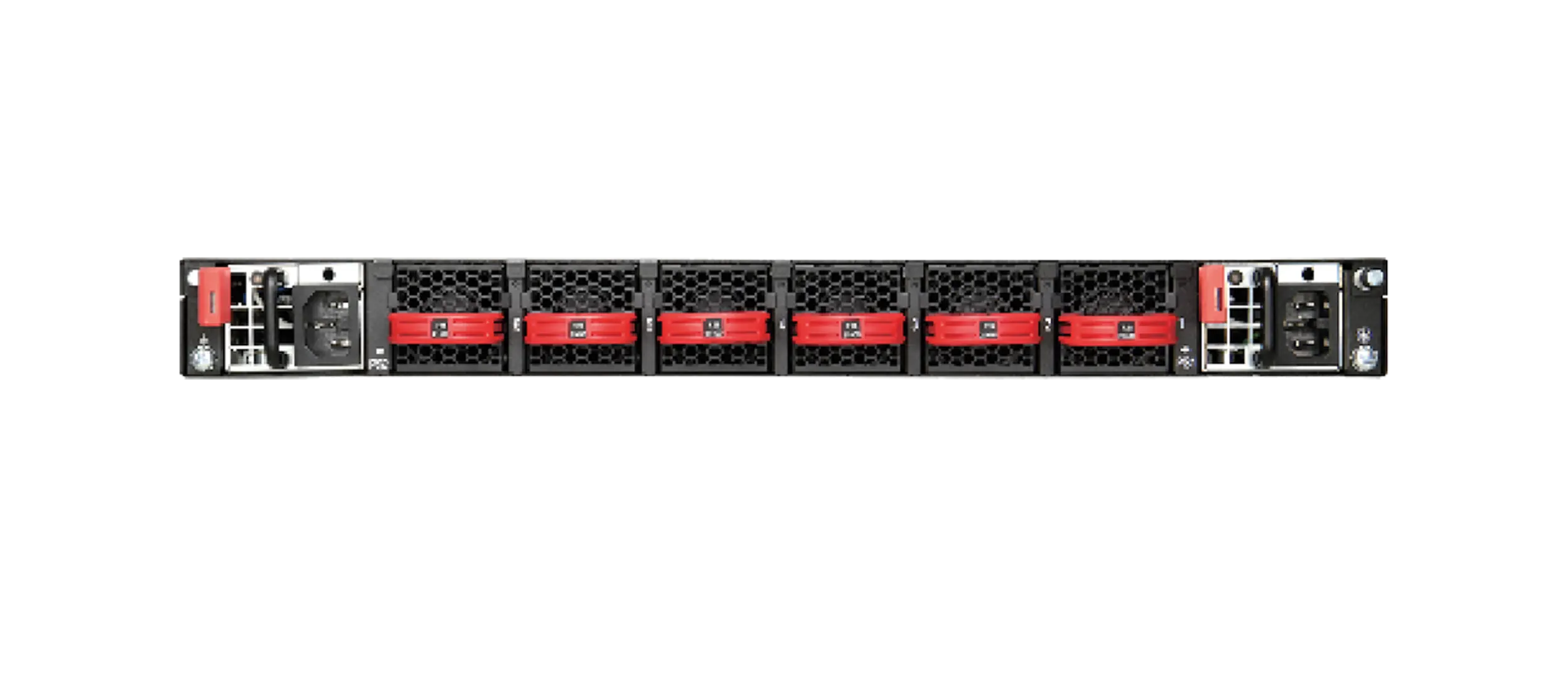

• Ensures reliability with N+1 redundant, hot-swappable cooling fans
• Features redundant, hot-swappable AC/DC power supplies with load sharing
• Optimised airflow design supporting both front-to-back and back-to-front cooling for data centre environments

• 40G/100G/200G/400G
• 40G/200G
• 10G/25G/50G/100G
• 32 x QSFP-DD Ports
• 64 x (Fan Out/Break Out via QSFP-DD)
• 128 x (Fan Out/Break Out via QSFP-DD)
