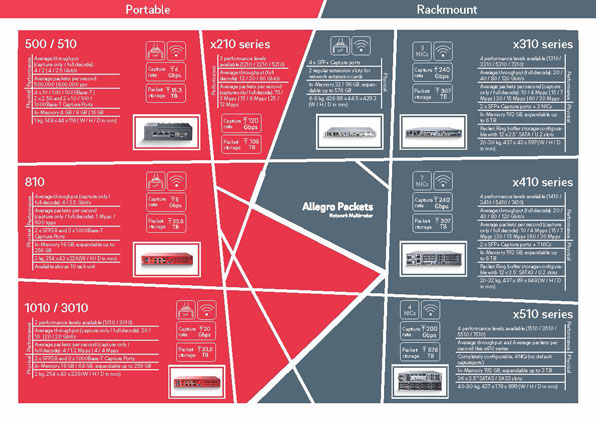

Overview Appliances
Product Range

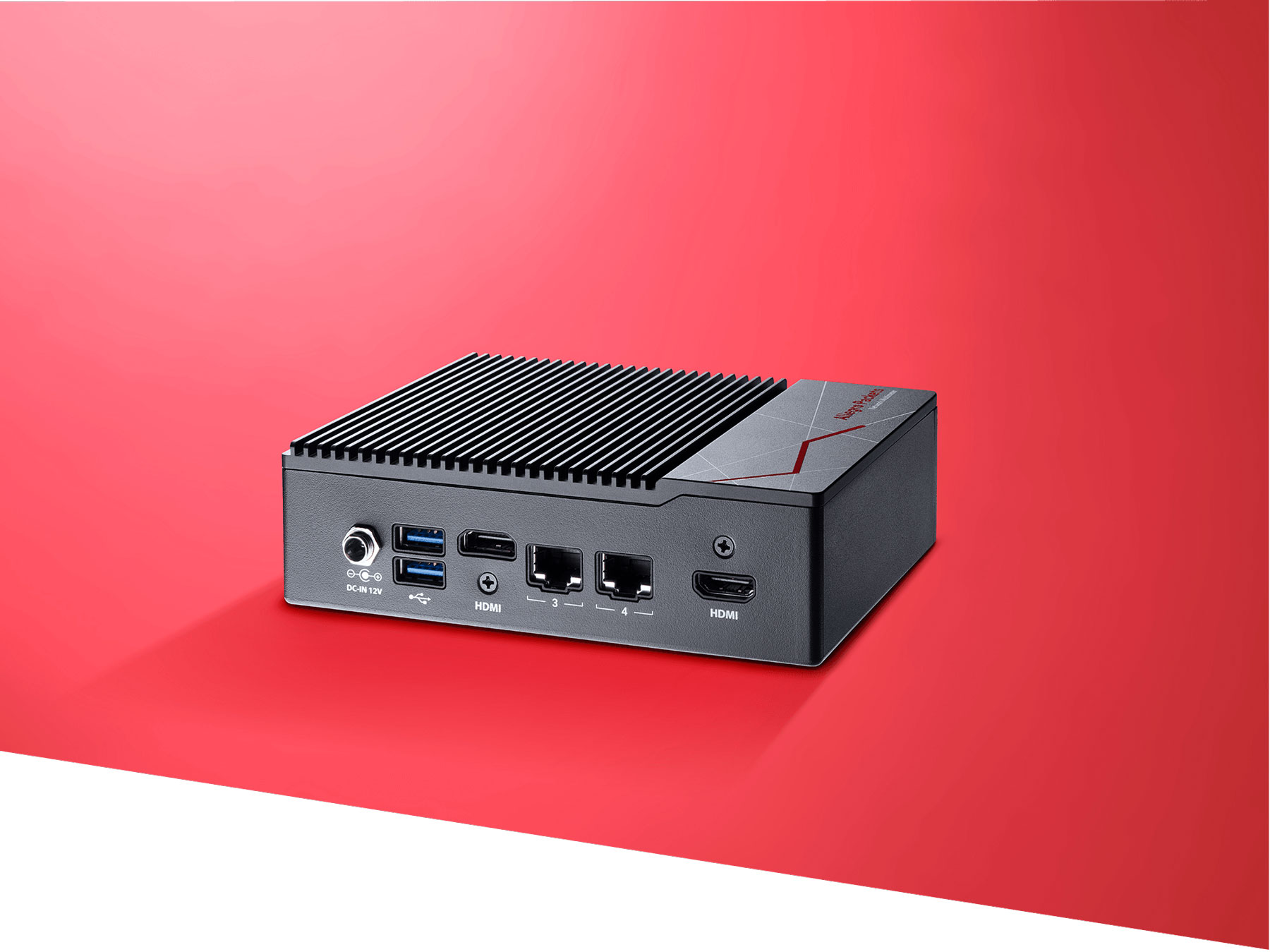

Allegro 500
For offices or small data centres
4 x 1000Base-T monitor ports
4 GBit/s max. throughput
4 – 8 GB internal database memory
0.5 – 4 TB integrated ring buffer
Portable (1 kg)
Allegro 510
For offices or small data centres
2 x 2.5G Base-T monitor ports, 2 x 1000Base-T monitor ports
4 Gbit/s max. throughput
16 GB internal database memory
960 GB – 15.36 TB integrated ring buffer
Portabel (1 kg)

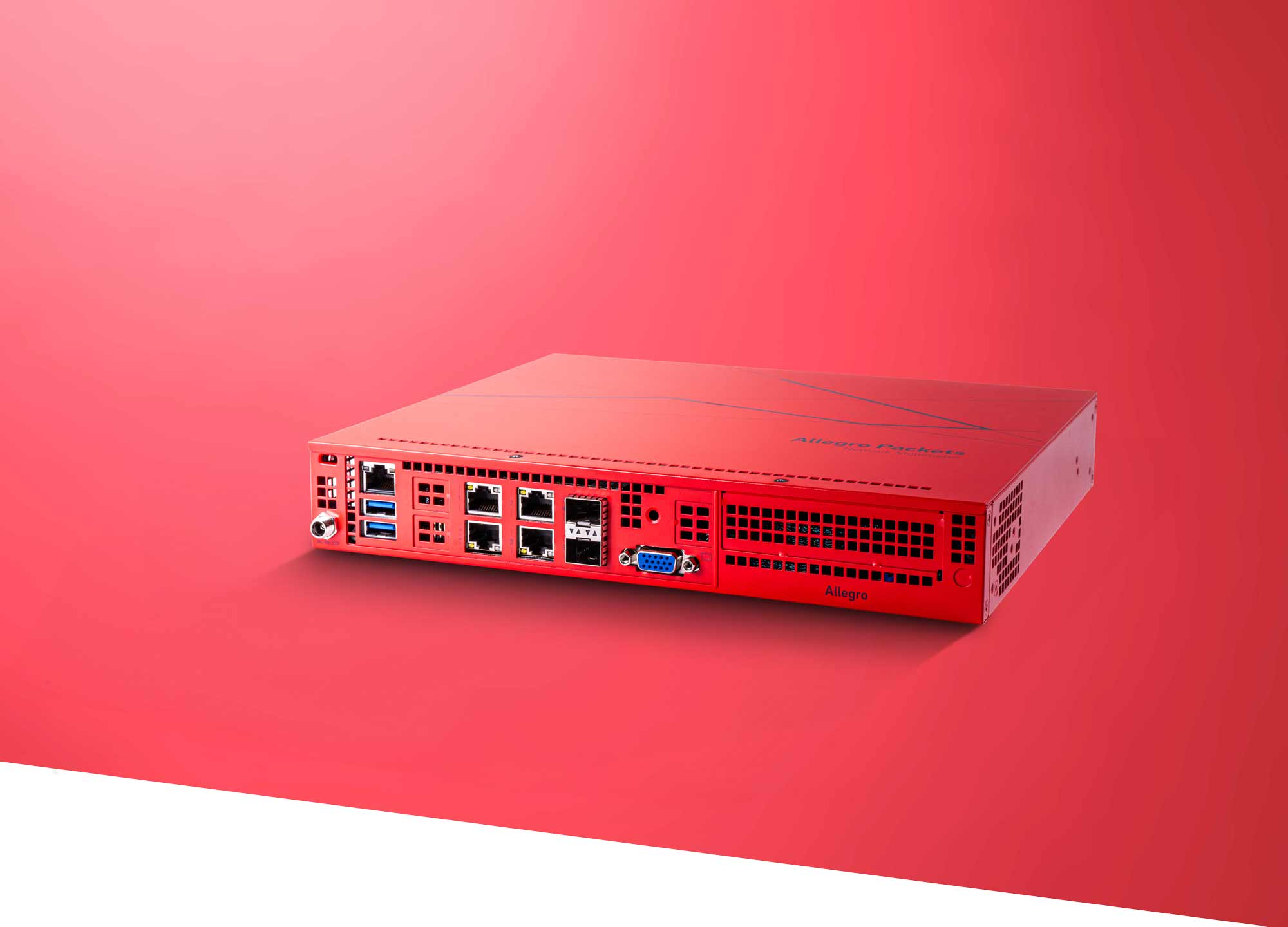

Allegro 810 / 1010 / 3010
For Enterprise Core Networks, Data Centres and ISP Networks
2 x SFP28 monitor ports, 3 x 1000Base-T monitor ports, 1 extension slot
20 Gbit/s max. throughput
16 – 256 GB internal database memory
Up to 33.6 TB integrated ring buffer
Portable 1U (2 kg)

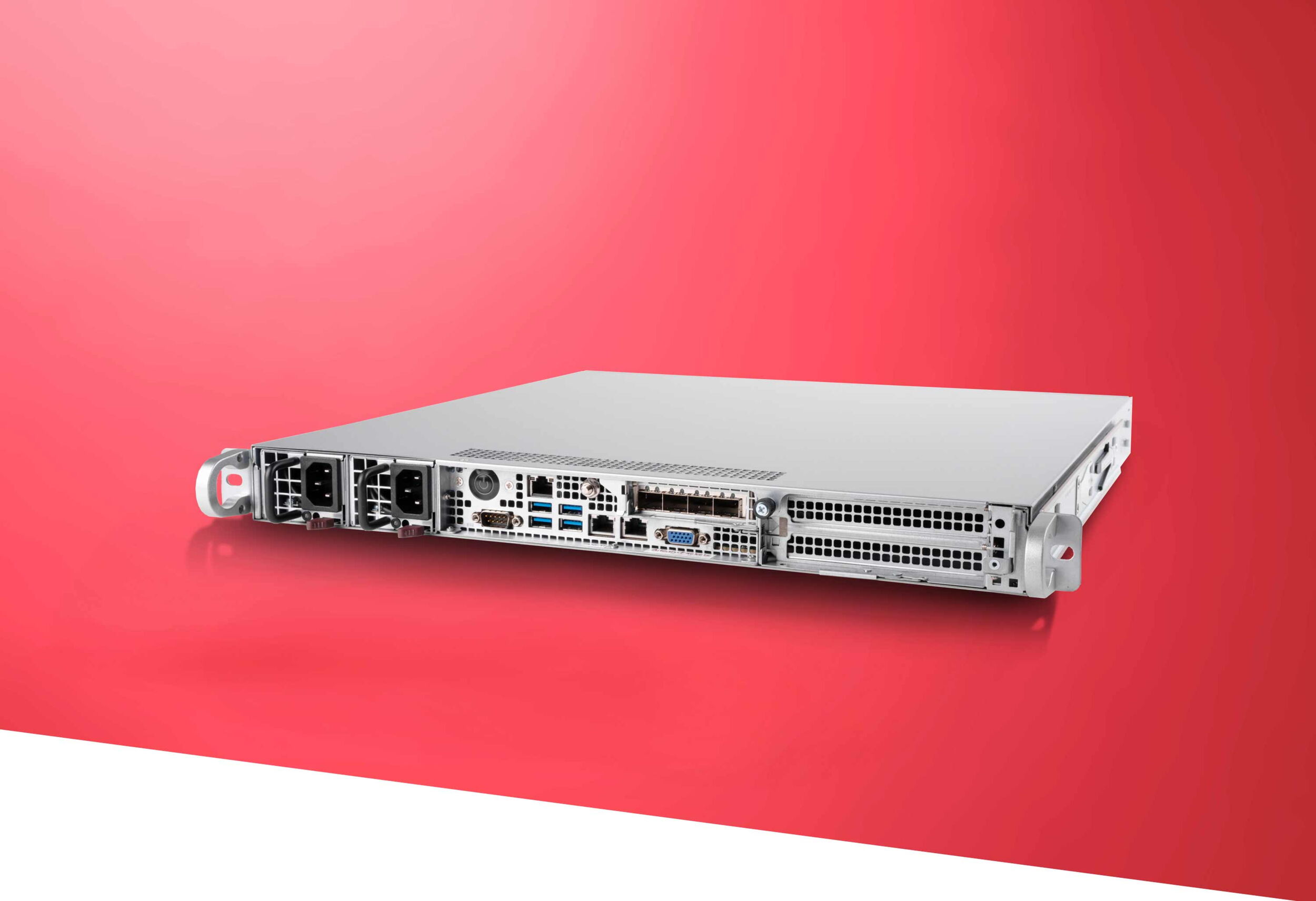

Allegro 1210 / 3210 / 5210
Successor to the Allegro 1200 and 3200
For office buildings or data centres
4 x SFP+ monitor ports, 2 extension slots for up to 8 more ports
120 Gbit/s max. throughput
32 – 576 GB internal database memory
Up to 106.4 TB integrated ring buffer
Portable / 1U (< 10 kg)

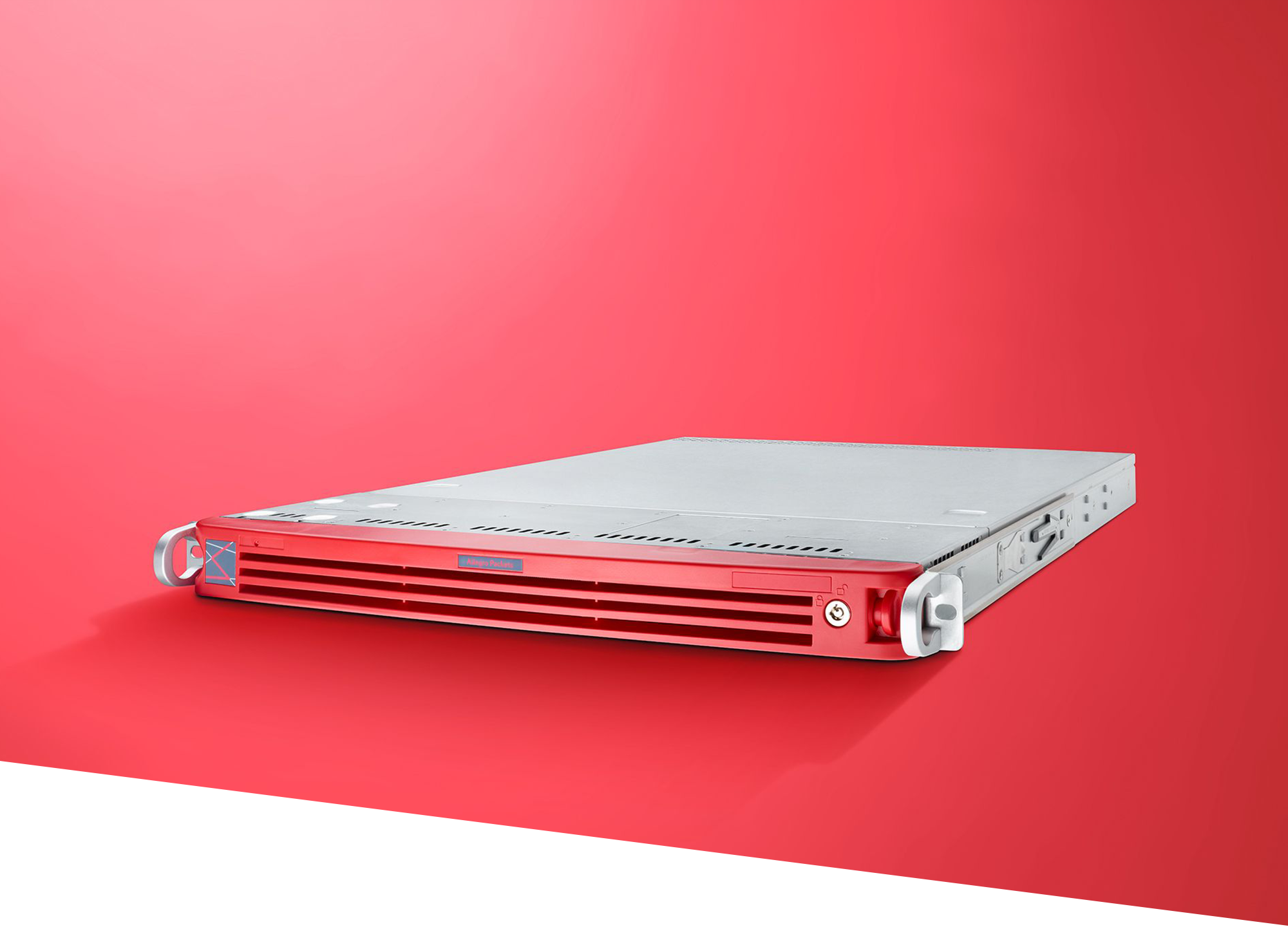

Allegro 1310 / 3310 / 5310 / 7310
Successor to x300 series
For Enterprise Core Networks, Data Centres and ISP Networks
2 x SFP+ monitor ports, 3 extension slots (1 – 400 GBit/s Cu or fibre)
240 GBit/s max. capture rate
192 GB – 6 TB internal database memory
Up to 256 TB integrated packet ring buffer, extendable with JBODs
1U footprint (weighs 20 – 30 kg)

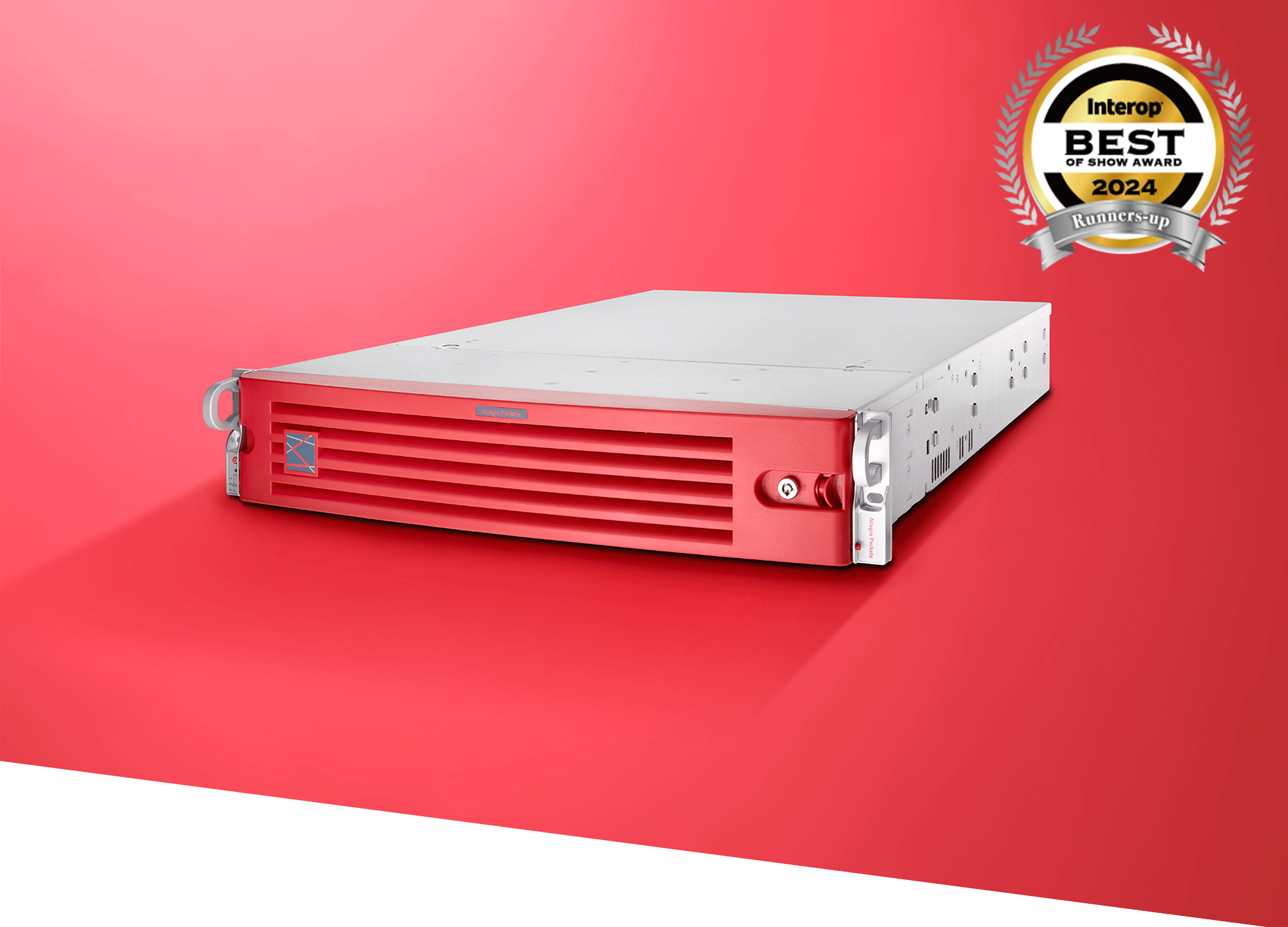

Allegro 1410 / 3410 / 5410 / 7410
2nd prize at Best of Show Award of Interop Tokyo 2024 for the Allegro 7410
Successor to x400 series
For Enterprise Core Networks, Data Centres and ISP Networks
2 x SFP+ monitor ports, 7 extension slots (1 – 400 GBit/s Cu or fibre)
240 GBit/s max. capture rate
192 GB – 6 TB internal database memory
Up to 307 TB integrated ring buffer, extendable with JBODs
2U footprint (weighs 20 – 32 kg)

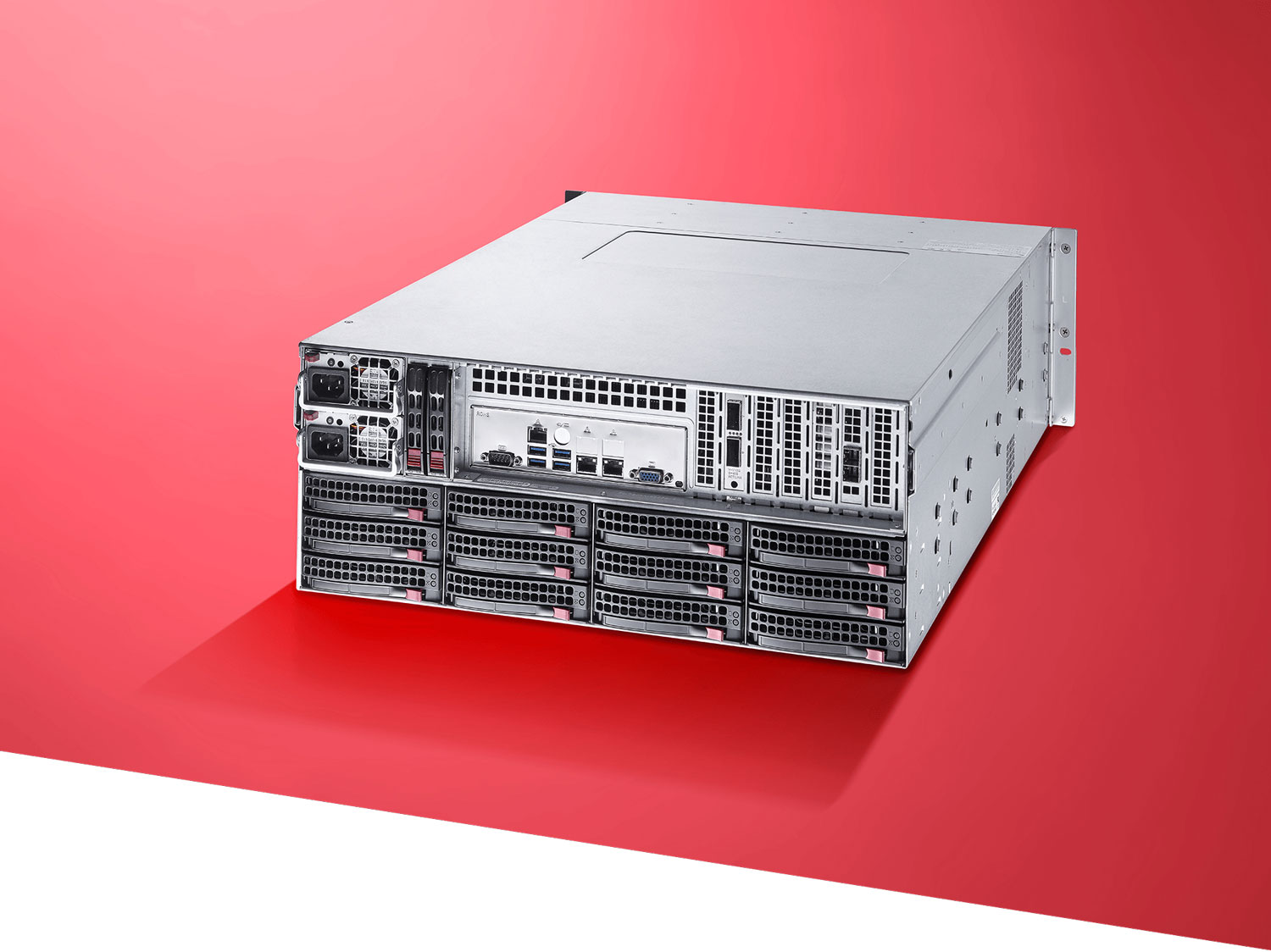

Allegro 1510 / 3510 / 5510 / 7510
Successor to x500 series
For Enterprise Core Networks, Data Centres, ISP Networks
4 extension slots (1 – 400 GBit/s Cu or fibre)
200 GBit/s max. capture rate
192 GB – 3 TB internal database memory
Up to 678 TB integrated ring buffer, expandable with JBODs
4U footprint (weighs 40 – 80 kg)
Allegro JBOD
Just a Bunch of Disks
Hard drive extension for Allegro Network Multimeter
Usable on all units from the Allegro 1000
Expandable by up to 792 TB HDD
Parallel ring buffer support
2U or 4U
Virtual Edition
For cloud applications
1 x virtual mirror port
Unlimited database storage
Unlimited ring buffer
Virtual
