Field Replaceable Optical Connector Protector System (US Patent 12,481,111) designed to extend connector life and reduce downtime Remote OTDR operation via USB connection Wireless control through Wi-Fi and Bluetooth® Bluetooth BLE support for Android™ and PAN support for iOS® devices Wi-Fi operation in both Access Point and Client modes OPX-BOX tools for device configuration and management Supports up to three OTDR test wavelengths, including live testing ports at 1625 nm and 1650 nm Dynamic range up to 43 dB Event and loss dead zones below 1 m and 4 m Visual Fault Locator (VFL) option with built-in local power control Optical Light Source (OLS) option with built-in local on/off control. Available in multimode and single-mode configurations Supports 850, 1300, 1310, 1490, 1550, 1625, and 1650 nm wavelengths Internal storage for saving test results Fixed or interchangeable SC, FC, ST, and LC optical adaptors Rugged housing with gap-free construction for added protection in harsh environments Flexible charging via 5V micro USB adaptor or continuous operation through a USB-connected host device

Software support Fiberizer® Mobile Supports Android™ devices through USB dongle, Bluetooth BLE, or Wi-Fi depending on module configuration Supports OTDR, OLS, VFL, and external Linux OPM functions Fiberizer Mobile for iOS® devices supports OTDR testing through Wi-Fi or Bluetooth PAN connectivity Fiberizer Cloud Upload OTDR traces and link map data directly from connected mobile devices for storage and post-processing Web Browser Remote Control Built-in web interface for remote operation through Wi-Fi or Ethernet connections Ethernet connectivity supported through micro USB OTG adaptors or optional AC adaptors with RJ45 ports User-friendly interface designed for technicians of all experience levels Linux® Platform Support Remote connectivity via USB, Bluetooth®, or Wi-Fi depending on platform and interface configuration

Data sheet – Download OPX-BOX Family User Manual – Download

OPX-BOXe – Telecom Test Solutions

Products by manufacturer

VeEx

OPX-BOXe

Products by manufacturer

VeEx

OPX-BOXe

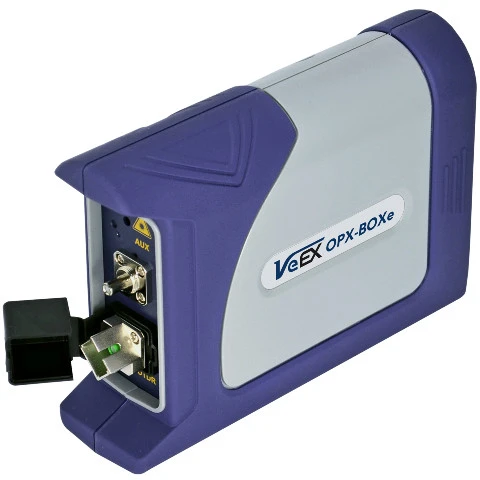

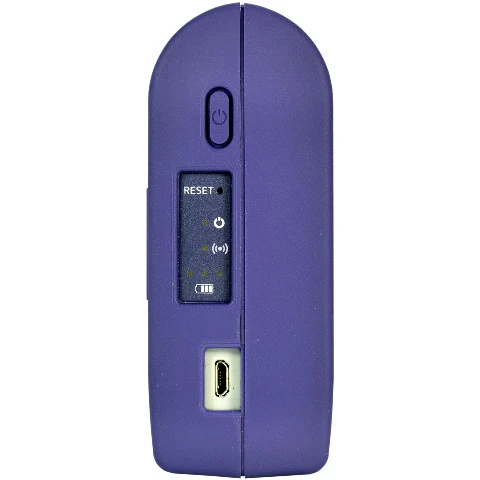

Rugged Pocket-Sized Mini OTDR with Wireless and USB Control

The VeEX OPX-BOXe is an ultra-compact OTDR designed for remote operation through VeEX Linux® platforms, Android™, and iOS® devices. Its lightweight, portable design makes it ideal for fibre testing in the field while providing the flexibility of both wired and wireless control.
Fiberizer® software for Windows®, Android™, and Apple® devices simplifies data transfer, test record management, and report generation for VeEX fibre optic testing solutions. View the Fiberizer webpage for more details.
