• Reduces testing operational expenses & accelerates time-to-market

Centralised attenuation control eliminates the need for variable attenuators at each test station and removes test setup and tear-down time, improving overall efficiency.

• Enables advanced testing & improves test result confidence

Provides centralised control of signal routing, combining, attenuation, and splitting on a single platform, enabling complex RF scenarios such as MIMO and Carrier Aggregation.

• Optimises lab assets & improves return on investment

Enables efficient scheduling, management, and optimisation of lab resources while improving utilisation through remote access capabilities.

4-Channel RF Test Position

• Complete solution for individual test stations with RF shield box, 4-channel attenuation array, and PC-based LAMTA control software.
• 4-channel RF attenuation array with a frequency range of 0.5 GHz to 7.5 GHz.
• Attenuation range from 0 to 95 dB with 0.25 dB adjustment steps.
• Independent attenuation control for each RF path.
• Supports roaming, handover, MIMO, and Carrier Aggregation test scenarios.
• Supports up to four RRU signal sources.
• Includes support for four SMA multi-band antennas (antennas not included).
• Features 2 × USB 3.0 ports, 2 × 1G Ethernet ports, and 1 × AC power pass-through.

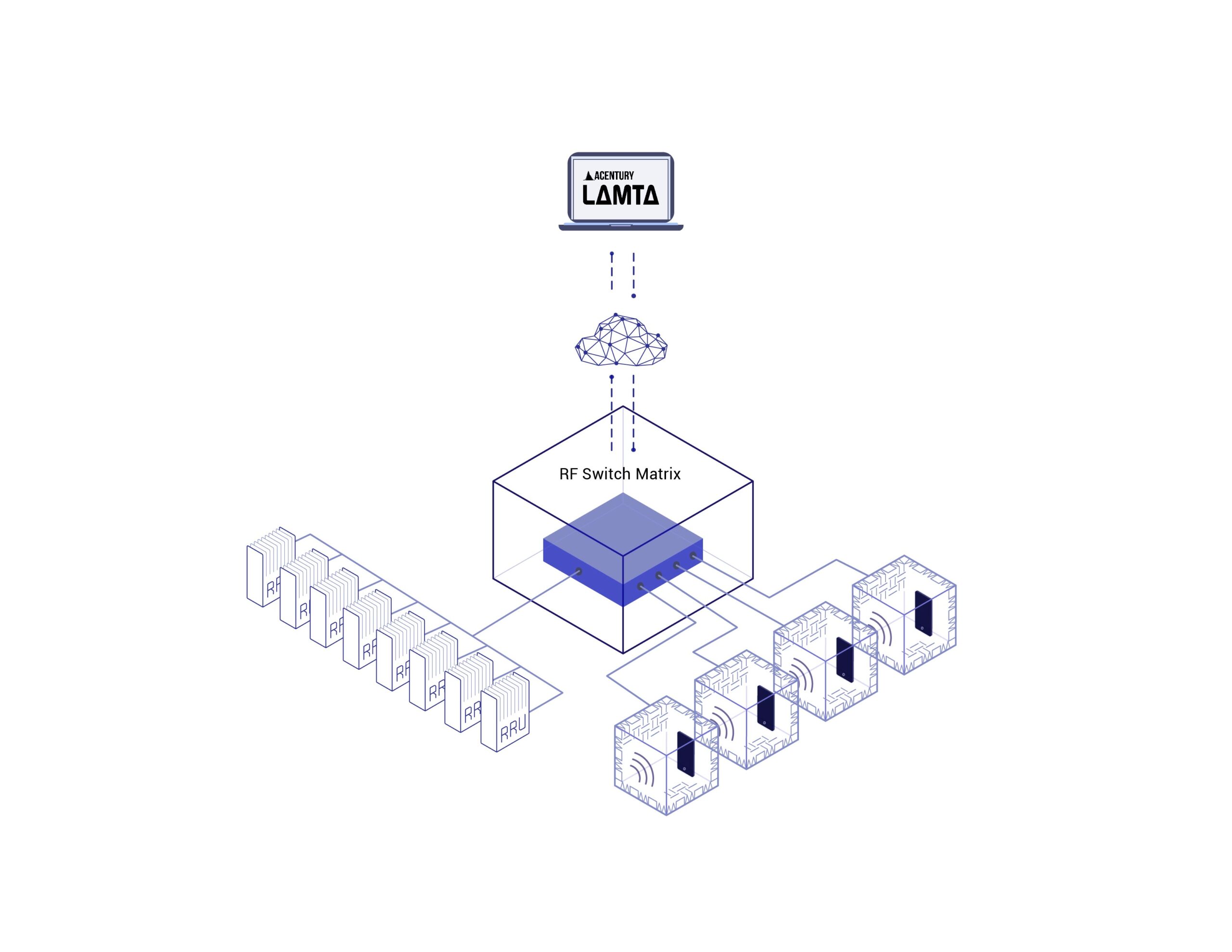

  8-Channel RF Test System
• Entry-level RF lab solution supporting up to 8 RF inputs and 8 RF test stations.
• Includes an 8×8 RF switch matrix with software control.
• Independently manages all 64 RF signal paths.
• Real-time power monitoring on all RF input ports.
• Simplifies complex RF test scenarios, including MIMO and Carrier Aggregation.
• Supports up to eight RRU or RF source inputs and eight RF shield box outputs.
• Compact design suitable for standard 19-inch rack installation.
  Full-Sized Multi-Site RF Lab
• Customisable for large-scale RF lab deployments.
• Supports hundreds or thousands of RF ports.
• Compatible with multiple attenuation systems and configurations.
• Supports any number of RF shield boxes.
• Enables multi-location and multi-city lab operations.
• Provides centralised resource sharing and remote access capabilities.
