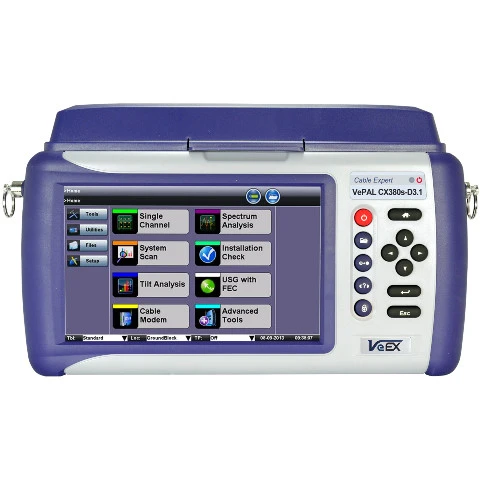

Durable and lightweight design built for demanding field environments High-resolution 7-inch colour touchscreen with an intuitive graphical interface Ethernet LAN management port for remote access, workforce management, and back-office integration Fast transfer of test results via USB, FTP, LAN, DOCSIS, Wi-Fi, Bluetooth®, or USB data modem Includes ReVeal™ PC software for software updates, configuration management, result processing, and report generation Interchangeable Li-Ion battery packs for extended field operation User interface lock function for uninterrupted long-term testing Optional Wi-Fi Wiz with InSSiDer SSID analysis Optional Wi-Fi spectrum analyser Optional VoIP and IPTV testing Optional digital fibre inspection scope Optional OPX-BOX+ OTDR USB accessory

High-speed spectrum analyser with 30 ms sweep time for detecting transient and impulse noise Comprehensive signal level measurements, including single channel, system scan, tilt, and installation verification Optional MPEG Explorer for QAM MPEG-TS analysis Optional upstream signal generator supporting CW, QPSK, and QAM modulation formats Forward and return path QAM analysis with MER, BER, constellation diagrams, histograms, and equaliser modes Optional advanced digital measurements, including HUM, EVM, phase jitter, symbol rate error, frequency response, and group delay DOCSIS 3.0 cable modem with up to 32×8 channel bonding Optional DOCSIS 3.1 cable modem support Patented subcarrier scan functionality FCC POP and optional digital POP measurements Ethernet testing up to 10 GigE with BERT, throughput, RFC2544, and Y.1564 service activation tests Optional Headend Check for automated channel lineup verification VeTest throughput testing Fully compatible with the CaLan® 3010H+ Sweep System for forward path testing up to 1.8 GHz and return path testing up to 204 MHz

Data Sheet – Download CX380s-D3.1 User Manual – Download White Paper: DOCSIS 3.1: Cable Tackles the Gigabit Challenge – Download Getting Started Guide: CS380s – Download It’s All About FEC: Like a Box of Chocolates – Download

CX380s-D3.1 (Replaced by CX380C) – Telecom Test Solutions

Products by manufacturer

VeEx

CX380s-D3.1 (Replaced by CX380C)

Products by manufacturer

VeEx

CX380s-D3.1 (Replaced by CX380C)

Advanced Maintenance Tester for CATV Networks

The VePAL CX380s-D3.1 is a next-generation testing platform developed for analogue and digital cable TV networks. It combines essential maintenance and troubleshooting tools, including enhanced spectrum analysis up to 1.8 GHz, DOCSIS 3.1 OFDM analysis, digital channel testing, sweep measurements, MPEG analysis, and 10 Gigabit Ethernet testing.
