• Rugged, lightweight design built for demanding field environments

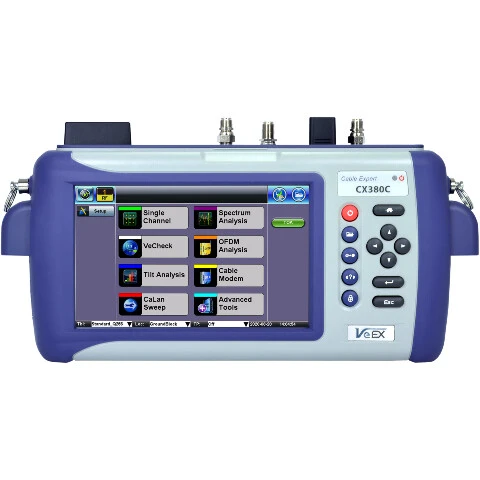

• 7-inch high-resolution colour touchscreen with intuitive graphical interface
• Ethernet LAN management port for remote access, back-office integration, and workforce management
• Multiple data transfer options, including USB, FTP, LAN, DOCSIS, Wi-Fi™, Bluetooth®, and USB modem support
• ReVeal™ PC software for configuration management, firmware updates, result processing, and report generation
• Interchangeable Li-ion battery packs for extended field operation
• User interface lock function for uninterrupted long-term testing
• Optional Wi-Fi Wiz with SSID analysis (InSSiDer)
• Optional USB digital fibre inspection scope
• Optional OPX-BOXe OTDR USB accessory

• High-speed 1.8 GHz spectrum analyser for advanced RF analysis
• Compatible with CaLan® 3010H+ Sweep System (forward path up to 1.8 GHz, return path up to 204 MHz)
• Full SLM measurement suite, including VeCheck full band scan, tilt, and single-channel testing
• In-service sweep capability for live network testing
• Advanced digital RF measurements, including MER, BER, equaliser response, HUM, centre frequency error, symbol rate error, frequency response, and group delay
• DOCSIS 3.1 cable modem with full OFDM analysis support
• Patented subcarrier scan technology
• V-Test throughput testing for RF and Layer 4+ interfaces
• Optional V-Perf Layer 4+ TCP performance testing
• Optional Physical layer testing with TDR and DMM support
• Optional Optical power meter functionality

Data Sheet – Download

White Paper: DOCSIS 3.1: Cable Tackles the Gigabit Challenge – Download

It’s All About FEC: Like a Box of Chocolates- Download

User Guide: EZ Remote Cloud Service Introduction – Download

Getting Started Guide: CX380C – Download

CX380C User Manual – Download
