Clear, intuitive measurement display with graphical test representation High-resolution colour touchscreen readable in all lighting conditions with protective cover Rugged handheld design built for demanding field environments Lightweight at approximately 2 lbs (1 kg) for easy portability Optimised for DOCSIS 3.0/3.1 network installation and maintenance tasks IP connectivity for back-office systems and workforce management Quick data export via USB memory stick ReVeal™ PC software for configuration management, firmware updates, analysis, and reporting Extended field operation with interchangeable Li-ion battery packs and standby power saving mode Wi-Fi Wiz with InSSIDer SSID analysis support Optional PTG-BOX Home Pressure Test Kit Optional digital fibre inspection scope (USB) Optional OPX-BOXe OTDR USB module Optional optical power meter accessory Wireless control via Wi-Fi, Bluetooth®, and USB

Frequency range from 5 MHz to 1218 MHz DOCSIS 3.1 cable modem with full OFDM analysis support Automatic dual diplexer switching (85/204 MHz) VeCheck full band scan and single channel QAM analysis Optional return path spectrum analysis MER and pre/post BER measurements for QAM signals analogue video level measurement support VeTest throughput performance testing Home installation and certification auto-test functions Gigabit Ethernet interface (10/100/1000) supporting VeTest and Layer 4+ testing Forward path ingress detection Optional TDR support for cable fault location

Data Sheet – Download CX310 User Manual – Download User Guide: EZ Remote Cloud Service Introduction – Download Using DRW Detection in CX310 – Download V150 USB File Access Guide – Download

CX310 DOCSIS 3.1 – Telecom Test Solutions

Products by manufacturer

VeEx

CX310 DOCSIS 3.1

Products by manufacturer

VeEx

CX310 DOCSIS 3.1

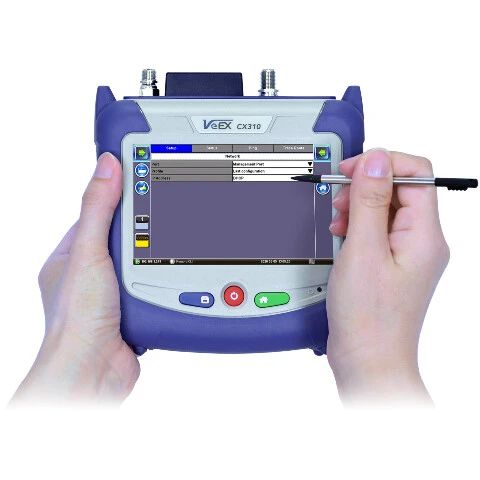

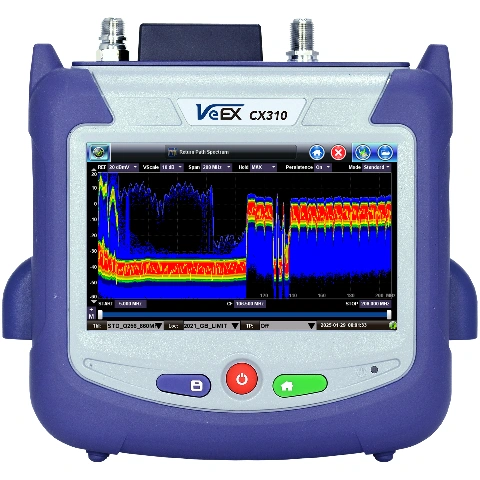

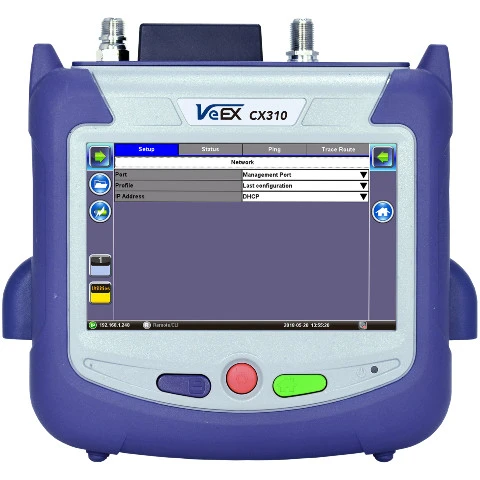

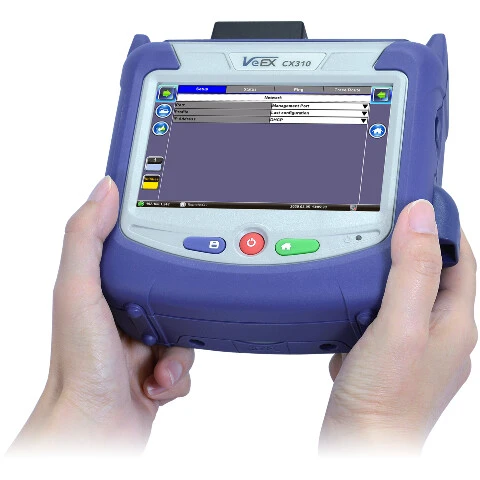

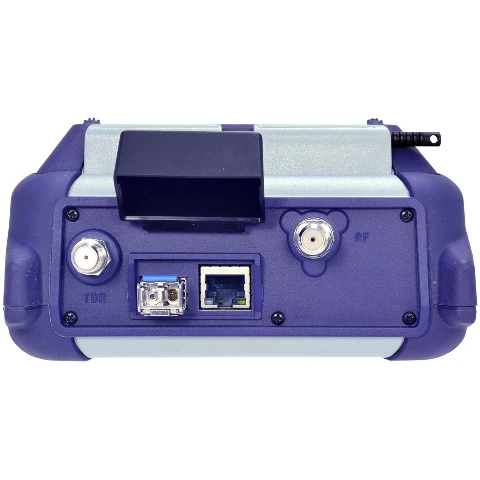

Handheld DOCSIS 3.1 Installation Test Set

The CX310 is a lightweight, ultra-portable and cost-effective test meter designed for DOCSIS 3.1 and DOCSIS 3.0 CATV network installation and maintenance. It includes a built-in DOCSIS 3.1 cable modem with true OFDM analysis and VeTest throughput measurement capabilities.
Key SLM functions include Single Channel testing, VeCheck full band scan, and ingress scan for accurate signal evaluation.
