• Award-winning CellWizard transmitters setting industry standard
• Wide-band frequency operation eliminates need for multiple transmitters
• Single device covers 150 MHz to 4.2 GHz
• Superior RF performance and output level accuracy
• +20dBm standalone output power for field testing
• +47 dBm with optional external power amplifiers
• Ideal for indoor and outdoor propagation model tuning
• Suitable for DAS injection and testing applications
• Multi-port models generate up to 4 CW signals simultaneously
• Each port operates independently with full frequency range
• Battery operated for extended field deployment
• Handheld and lightweight for portability
• Turn-key setup with high-gain antennas and accessories
• Low-loss cables and non-metal tripods for accuracy


• High accuracy RF signal generation for testing
• Battery operated for portable field applications
• Handheld and lightweight design for mobility
• Ergonomic user interface for field operator ease
• Soft-key field upgradeable for future capability expansion
• Modular design saves user investments and logistics costs
• Multi-port capability for simultaneous signal generation
• Wide-band frequency coverage from 150 to 4.2 GHz
• Independent port operation on multi-port models
• Supported bands include CBRS, LTE, UMTS/HSxPA, GSM/EDGE, CDMA2000/EV-DO, WiFi/WiMAX, Public safety/Tetra/LMR
• Applications include model calibration, DAS testing, walk-testing, antenna tuning, signal strength testing


• Model WTX-05
  Frequency Range: Band selection of 700, 850, 900, 1800, 1900, 2100, 2600 MHz
  Ports: 1
  Maximum Output Power: +20 dBm
  Modulations: CW and WCDMA
  Battery Operation: 105 minutes

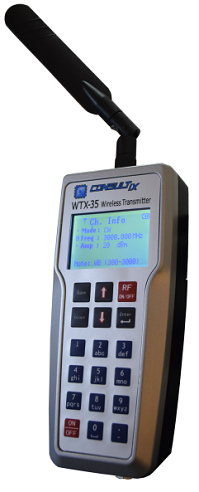

• Model WTX-35-A
  Frequency Range: 300 to 4200 MHz
  Ports: 1
  Maximum Output Power: +20 dBm
  Modulations: CW
  Battery Operation: >3 hours
• Model WTX-35-B
  Frequency Range: 150 to 3700 MHz
  Ports: Up to 4 simultaneously
  Maximum Output Power: 15 dBm
  Modulations: CW
  Battery Operation: 105 minutes
• Model WTX-35-C
  Frequency Range: 60 to 3000 MHz
  Ports: 1
  Maximum Output Power: +20 dBm
  Modulations: CW
  Battery Operation: No data
• General Features
  Optional external power amplifiers up to +47 dBm
  Supported Bands: CBRS, LTE, UMTS/HSxPA, GSM/EDGE, CDMA2000/EV-DO, WiFi/WiMAX, Public safety/Tetra/LMR
  Battery Powered for field mobility
  Adjustable output power levels available
  Can be used for antenna testing, tuning, and propagation model calibration
