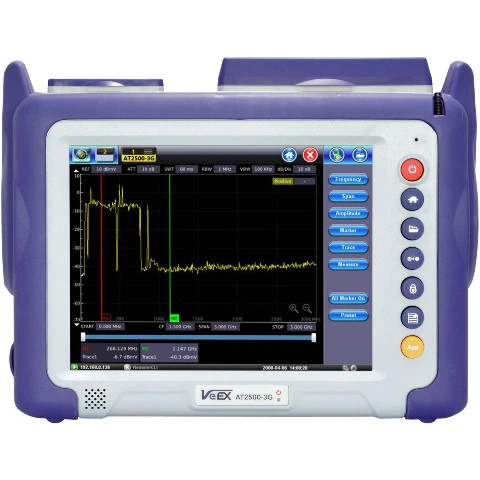

• 10.4-inch high-resolution colour touchscreen with intuitive graphical interface
• Remote access and control through web browser, VNC®, and ReVeal™ PC software
• Ethernet LAN management for remote operation, workforce management, and back-office integration
• Quick transfer of test results using USB storage devices
• ReVeal™ PC software for firmware management, test setup configuration, result processing, and report generation
• EZ-Remote support for remote testing, monitoring, troubleshooting, and training
• Centralised test result management and reporting through R-Server
• User interface lock feature for secure long-term testing

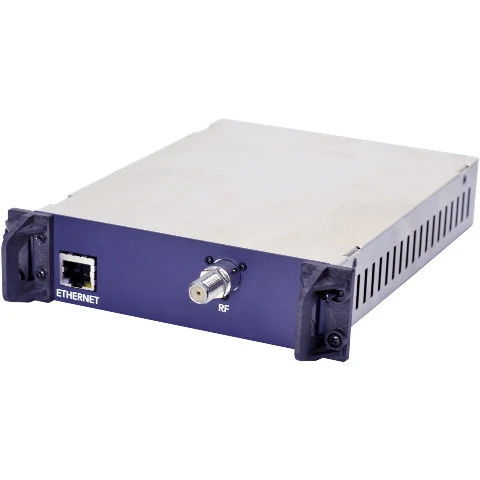

• Supports optional DOCSIS 3.1 testing module

• High-sensitivity 3 GHz spectrum analyser with automatic filtering for improved dynamic range
• Advanced QAM demodulation with MER performance up to 47 dB
• Support for Annex A, B, C, DOCSIS 3.1 OFDM, ISDB-T, DVB-S, and DVB-S2 signal analysis
• Patented Subcarrier Scan technology
• Fast Full Band VeCheck testing up to 1.2 GHz
• Real-time full-band downstream level monitoring
• Multiple trace display with enhanced marker and detector options
• Comprehensive SLM measurements including Single Channel, System Scan, and Tilt
• Optional MPEG Explorer for QAM MPEG transport stream analysis
• QAM analysis including MER, Pre/Post BER, constellation diagrams, histogram, equaliser, and QIA analysis
• Advanced digital measurements such as HUM, EVM, phase jitter, symbol rate error, frequency response, and group delay
• FCC Proof of Performance testing capabilities
• Optional Headend Check for automated channel lineup verification
• Advanced QAM impairment analysis for faster fault identification and troubleshooting
